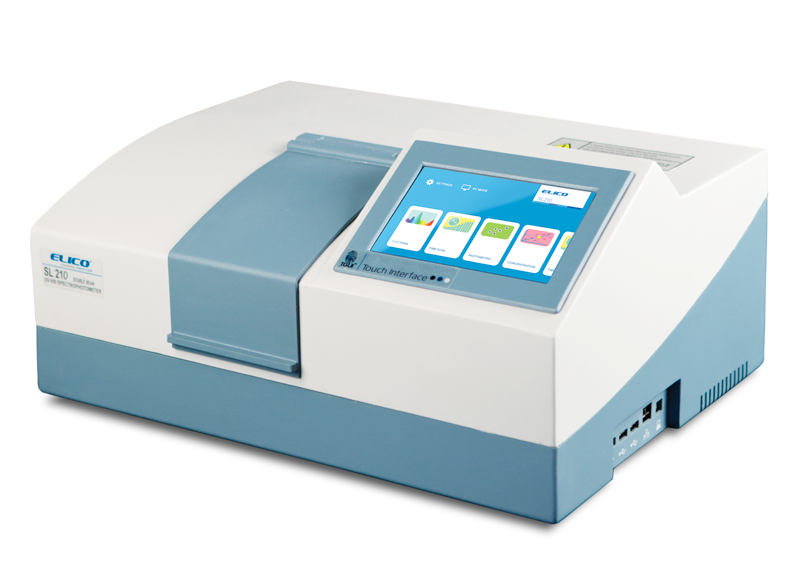

SL-210 Multipurpose UV-Visible Spectrophotometer with Fixed 1 or 1.8nm bandwidth offers wavelength scanning from 190-1100nm.
SALIENT FEATURES
| SPECTRAL | |
| Range | 190 to 1100 nm |
| Bandwidth | 1 or 1.8 nm |
| Readability | 0.1 nm |
| Accuracy | ± 0.3 nm |
| Repeatability | ± 0.2 nm |
| PHOTOMETRIC | |||||
| System | Double beam optics | ||||
| Range | ± 3.5 Abs | ||||
| Accuracy | ± 0.005 Abs at 1.0 Abs | ||||
| ± 0.010 Abs at 1.5 Abs | |||||
| Repeatability | ± 0.002 Abs at 1.0 Abs | ||||
| Stability (Baseline) | 0.003 Abs/hr. after 2 hour warm-up | ||||
| Stray Light | <0.05% T at 220 nm with NaI 10g/L | ||||
| Readability |
| ||||
| LIGHT SOURCE |
| Pre aligned Deuterium Lamp (D2) & Tungsten (W) Halogen Lamp |
| DETECTOR |
| Silicon Photo Diode or PMT |
| MONOCHROMATOR |
| Concave holographic grating with 1200 lines/mm |
| STORAGE |
| 128GB |
| PORTS |
| 3 - USB Ports |
| TCP/IP. Ehternet, WIFI |
| SAMPLE ATTACHMENT | |
| Standard | Fixed 10mm path length Holders for Reference and Sample. |
| Optional | Fixed multi path cuvette holders for Reference and Sample accommodating 10mm to 100 mm cuvettes. |
| Fixed cuvette holder for Reference and 6 Position motorized 10 mm path cell holder for Sample. | |
| Fixed cuvette holder to accommodate micro cuvettes. | |
| ACCESSORIES SUPPLIED | |
| With Instrument | 10 mm Path length Cuvettes |
| At extra Cost | SpectraTreats (PC Software), Multi Path length Cuvette holder, 10 mm, 20 mm, 40 mm, 50 mm and 100 mm Path length Cuvettes, Micro Cuvettes and Printer |
