UV-VIS Spectrophotometer

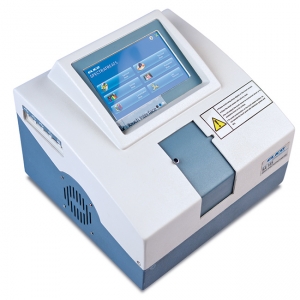

Diode Array Spectrophotometer with Fiber Probe & Touch Screen enabled Built-In PC
SA-165 Diode-Array Spectrophotometer is a single- beam, spectrophotometer. It has a 7" inch high resoultion touch screen display Leveraging the power of Microsoft® Windows CE®. UV - range of 190 to 800 nm with 1.8 nm resolution. It is used when speed of measurement is essential. It is faster, more sensitive and has more precision than a conventional spectrometer due to the photo diode-array detection system. This spectrometer is ideal for kinetics.
- 1024 Pixel Array based Spectrophotometer
- Smallest form factor Spectrophotometer.
- 7" High Resolution Touch Screen LCD Color Graphical Display with Built in Microsoft® Windows CE®
- Fast Scan Speed.
- High signal to noise ratio.
- More rugged (Minimal moving parts)
- Lamp selection enables conserving the life of the lamps.
- Built in advanced Data Processing capabilities
- Supports USB printing with PCL 5e class Printer.
- Networking Connectivity through TCP/IP Interface.
Applicable Industries
Academia & Research
Environmental
Pharmaceutical & Chemical
Food & Beverages
TECHNICAL SPECIFICATIONS
| SPECTRAL |
| Range | 190 to 800 nm |
| Bandwidth | < 2 nm |
| Accuracy | ± 0.5 nm with Holmium Oxide glass Filter |
| ± 0.5 nm with 486.1 and 656.2 nm of D2 peaks |
| Wavelength Resolution | < 0.62 nm per pixel |
| Resolution Test | >1.4nm |
| PHOTOMETRIC |
| Range | ± 2 Abs |
Accuracy
| ± 0.01 AU with 60 ppm Potassium Dichromate |
| ± 0.005 AU at 440, 590nm with 0.5 AU of neutral density glass filter |
| ± 0.01 AU at 440, 590nm with 1.0 AU of neutral density glass filter |
| Stability (Baseline) | 0.005 AU after 15 minutes warm-up |
| Stay light | <1% T @ 220 nm with NaI |
| <1% T @ 340 nm with NaNO2 |
| DATA PRESENTATION |
| Display | 7" ( 800 x 480) High resolution graphical display |
| Hard Copy | On printer ( USB interface) |
| Soft Copy | Mass Data Storage through USB Pen Drive |
| LIGHT SOURCE |
| Pre aligned Deuterium Lamp (D2) & Tungsten (W) Halogen Lamp |
| DETECTOR |
| Diode Array Detector - 1024 pixels |
| PORTS |
| 3 USB Ports - Can be used for Printer, Keyboard, Pen Drive and Mouse |
| TCP/IP Port - Network Connectivity |
| PC Port - PC Connectivity |
| SAMPLE ATTACHMENT |
| Standard | 2 position motorized cell holder to accommodate 10 mm Path Length Cuvettes. |
Optional
| 2 position motorized cell holder to accommodate multi Path Length Cuvettes. |
| Fibre Optic Dip probe attachment. |
| Fibre Optic couple 10mm Path Length cell holder. |
