Spectrophotometer

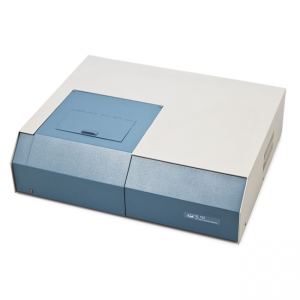

Near Infra Red (NIR) Spectrophotometer
Near-infrared spectroscopy is based on molecular overtone and combination vibrations. Such transitions are forbidden by the selection rules of quantum mechanics. As a result, the molar absorptivity in the near-IR region is typically quite small. One advantage is that NIR can typically penetrate much farther into a sample than mid infrared radiation. Near-infrared spectroscopy is, therefore, not a particularly sensitive technique, but it can be very useful in probing bulk material with little or no sample preparation.
- PC based, User-friendly & Menu driven
- High performance Concave Grating Monochromator.
- Transmittance & Reflectance measurements
- Simple but most effective optical layout with minimum components.
- Advanced Chemometrics Multiple constituents analysis with PLS algorithims & Fit error analysis
Applicable Industries
Academia & Research
Pharmaceutical & Chemical
Food & Beverages
TECHNICAL SPECIFICATIONS
| SPECTRAL | |
| Range | 600 to 2500 nm |
| Bandwidth | 20 nm |
| Readability | 0.1nm |
| Accuracy | ± 0.5 nm |
| Repeatability | ± 0.2 nm |
| PHOTOMETRIC | |
| Range | ± 2.5 Abs |
| Accuracy | ± 0.005 Abs |
| Repeatability | ± 0.002 Abs at 1.0 Abs |
| Stray Light | <1% T at 2300 nm |
| MONOCHROMATOR |
| 300 Lines/mm Concave Holographic Grating. |
| LIGHT SOURCE |
| Quartz Halogen Lamp |
| PC CONNECTIVITY |
| Through RS232C Interface |
| GRATING DRIVE |
| Continuous scanning steppermotor drive |
| DATA PROCESSING |
| Spectrum, Discrete Wavelength, Concentration, ε - Factor, Time Scan, Enzyme Kinetics, Overlay, Ratiometric, Peak Picking, Upto 4th order Derivative, Spectra Zooming, Smoothing, Data Saving & Retrieval, Auto Zero facility and Printing |
| DETECTOR |
| Two colour Detector Monitor ( Si-Pbs) |
| SAMPLE ATTACHMENT | |
| Standard | 2 Position motorized 10 mm path cuvette holder for Reference and Sample. |
| Optional | 2 Position motorized Reflectance mode attachment for Reference and Sample. |
