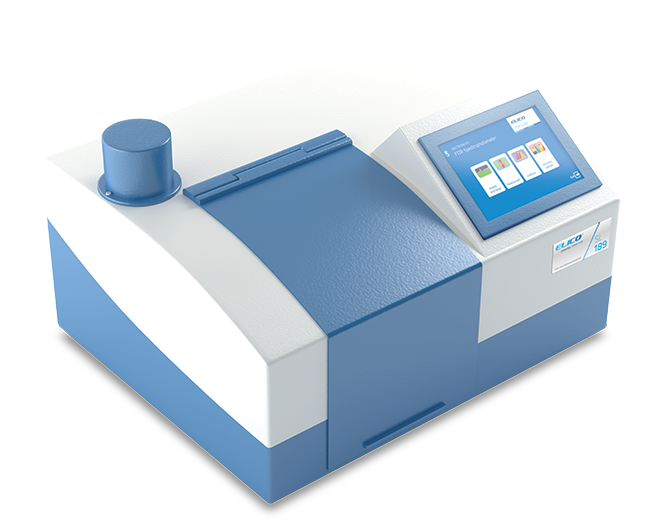

SL 189 Fourier Transform Infrared Spectrophotometer
Fourier Transform Infrared Spectrophotometer
The Indigenous low cost FTIR Spectrophotometer analyses both Liquid and Solid samples with option to select resoution and mirror speed allows varitey of sample analysis
- 7" inch high resoultion touch screen display Leveraging the power of Microsoft® Windows CE®
- No External Calibration needed
- Greater Wavenumber Accuracy
- Rugged Sealed and desicated Interfermoeter with corner cube retroreflectors
- Output port for external accesory attachments
- Optional high sensitivity MCT detector attachment
- USB, TCP-IP Ports
Applicable Industries
Academia & Research
Pharmaceutical & Chemical
TECHNICAL SPECIFICATIONS
| OPTICAL BENCH |
| Interferometer | 45° Michelson Interferometer with high reflectivity gold coated corner cube retro reflective optics. Sealed, desiccated and isolated for vibrations |
| Source | Long life Silicon Carbide |
| Detector | Lithium tantalate (Pyro electric type) |
| Beam Splitter | Proprietary Germanium coated Potassium Bromide |
| Interferogram | Single Sided |
| Sample Compartment | Wide sample compartment can accommodate all the accessories used for various liquid, solid, films, gels, powders analysis in transmission method and also all the reflection accessories like ATR, Diffuse reflection, Specular reflection |
| PERFORMANCE PARAMETERS |
| Wavenumber Range | 350 cm-1 to 7800 cm-1 |
| Resolution | 0.5, 1, 2, 4, 8 and 16 cm-1 |
Signal to Noise Ratio
| 9000:1 (4 cm-1 resolution, 2200 cm-1 and 1minute scan) |
| DATA PRESENTAION |
| Display | 7” (800x480 pixel) high resolution Graphic Display with Touch interface |
| User Interface | Windows based Graphical User Interface with Graph and Tabular data presentation |
| Hard Copy | On printer ( USB interface) with PCL5e Support |
| Soft Copy | Mass Data Storage through USB Pen Drive |
END OF THE INFORMATION
