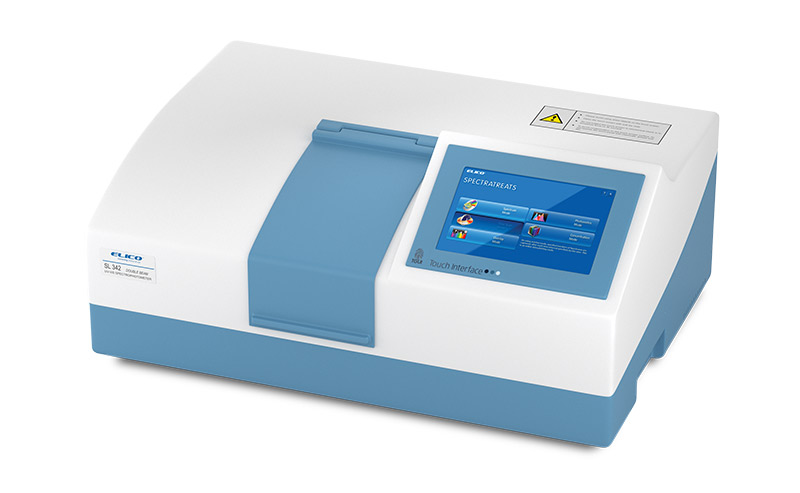

SL-342 Double Beam Spectrophotometer with Buit-in PC and 7" inch high resolution Touch Screen.
SALIENT FEATURES
Optional
| SPECTRAL | |
| Range | 190 to 1100 nm (or) 340 to 1100 nm |
| Bandwidth | 1nm (or) 1.8 nm |
| Readability | 0.1 nm |
| Accuracy | ± 0.3 nm |
| Repeatability | ± 0.2 nm |
| PHOTOMETRIC | |||||
| System | Double beam optics | ||||
| Range | ± 4 Abs | ||||
| Accuracy | ± 0.005 Abs at 1.0 Abs | ||||
| ± 0.010 Abs at 1.5 Abs | |||||
| Repeatability | ± 0.002 Abs at 1.0 Abs | ||||
| Stability (Baseline) | 0.003 Abs/hr. after 2 hour warm-up | ||||
| Stray Light* | <0.05% T at 220 nm with NaI 10g/L | ||||
| Readability |
| ||||
| LIGHT SOURCE |
| Deuterium Lamp (D2)* & Tungsten (W) Halogen Lamp |
| STORAGE |
| 128 GB |
| PORTS |
| USB, WIFI, ETHERNET |
| CONTROL |
| Built-in Windows Based PC Control |
| DETECTOR |
| Silicon Photo Diode (or) PMT |
| MONOCHROMATOR |
| Czerny Turner with concave holographic grating (1200 lines/mm) |
| PRESENTATION DATA | |
| Display | 7" High resolution graphical display |
| SAMPLE ATTACHMENT | |
| Standard | Fixed 10mm path length Holders for Reference and Sample. |
| Optional | Fixed multi path cuvette holders for Reference and Sample accommodating 10mm to 100 mm cuvettes. |
| Fixed cuvette holder for Reference and 6 Position motorized 10 mm path cell holder for Sample. | |
| Fixed cuvette holder to accommodate micro cuvettes. | |
| ACCESSORIES SUPPLIED | |
| With Instrument | 10 mm Path length Cuvettes, Built in UV VIS Spectratreats® Software. |
| At extra Cost | Multi Path length Cuvette holder, 10 mm, 20 mm, 40 mm, 50 mm and 100 mm Path length Cuvettes, Micro Cuvettes, USB Pen Drive and Printer |
* Applicable for Wavelength Range 190 to 1100nm
