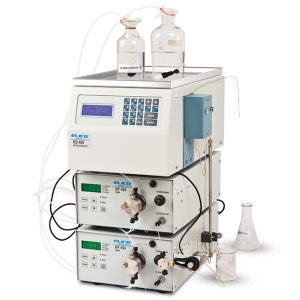

ELICO's HPLC systems are ideal for routine binary separations and quality assurance applications and are perfect for tight spaces and smart budgets. The Variable wavelength UV-VIS Detector features high sensitivity with absorbance ranges from 0 to 3.0 AU.
SALIENT FEATURES
VARIABLE UV-VIS DETECTOR
| SPECTRAL | |
| Range | 190 to 800 nm |
| Bandwidth | 4 nm |
| Readability | 0.1 nm |
| Accuracy | ± 0.5 nm |
| Repeatability | ± 0.2 nm |
| PHOTOMETRIC | |
| Range | 0 to 3.0 AU |
| Sensitivity Range | 0.001 AU to 3.000 AU |
| Readability | 0.0001 Abs |
| FLOW CELL | |
| Type | Analytical |
| Path Length | 10 mm |
| Material | Stainless Steel |
| TIME INTERVAL | |
| 0.1, 0.2, 0.3, 0.4, 0.5, 1 & 2 sec |
PUMP - QTY(2)
| FLOW RATE | |
| Standard | 0.01 to 10 mL/min |
| Optional | 0.001 to 5 mL/min |
| 0.1 to 40 mL/min | |
| PRESSURE | |
| Standard | 0 to 6,000 psi ( 10mL SS head) |
| Optional | 0 to 6,000 psi ( 5mL SS head) |
| 0 to 5,000 psi ( 5 & 10 mL/min PEEK ) | |
| 0 to 1,600 psi ( 40 mL/min SS or PEEK head) | |
