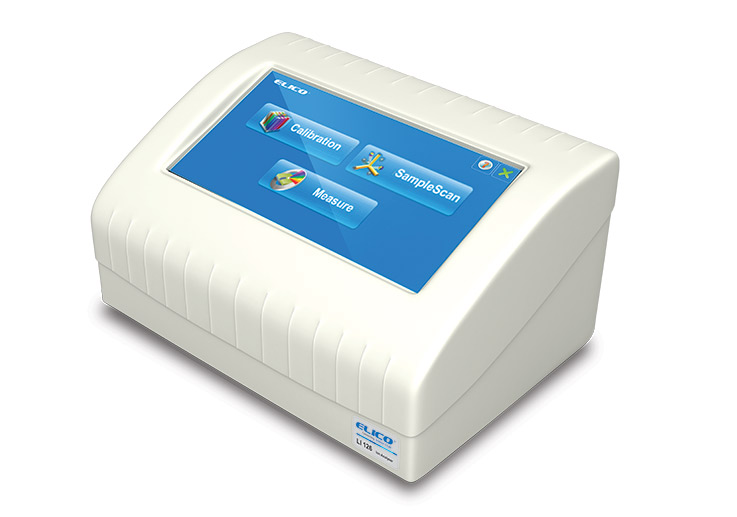

LI-126, Microprocessor based Two Channel Ion Analyser with Printer Interface
SALIENT FEATURES
| MODE | pH | pX(Activity) | mV | Temp °C | Concentration (M) |
| Range | -2 to 20 | -2 to +20 | ±2000 | 0 to 100 | 0.001 to 19999 |
| Accuracy | ±0.002* | -- (1) | ±0.2 | ±0.1 | 0.5% FS |
| Repeatability | 0.001 | 0.001 | 0.1 | 0.1 | -- |
| SENSOR INTERFACE | |
| Input Impedance Ω @25°C | >10(13) |
| Receptacle | BNC and Banana (2 no’s) |
| TEMPERATURE COMPENSATION | |
| 0 to 100°C Auto /Manual |
| DATA PRESENTATION | |
| 7" Graphical User Interface |
| PHYSICAL DIMENSIONS | INSTRUMENT | STIRRER |
| Size (WxDxH) in mm | 200 x 165 x 125 | 150 x 65 x 100(2) |
| Weight (in kg) | Approx. 5 | Approx. 0.7 |
| ACCESSORIES SUPPLIED | |
| With Instrument | RTD Probe, Stirrer GI 631 with Electrode stand and holding clamp and Stirring Capsule, Buffer Tablets and Polythene Bottles. |
| At extra Cost | Ion Selective Electrodes and corresponding standard solutions, background Electrolytes or ionic strength adjusters, Reference Electrodes - Single or Double Junction, Glass pH Electrodes and Reference Electrodes or Combination pH Electrodes, Metallic Platinum & Silver and Calomel Reference Electrodes for end point detection in titration. |
* Conforms to IS2711-1979.
(1) Depending on the Standards
(2) Excluding 290 mm long Electrode Stand
A : Automatic
GE : Glass Electrode
CE : Combined pH Electrode
M : Manual
RE : Reference Electrode
ISE : Ion Selective Electrode
